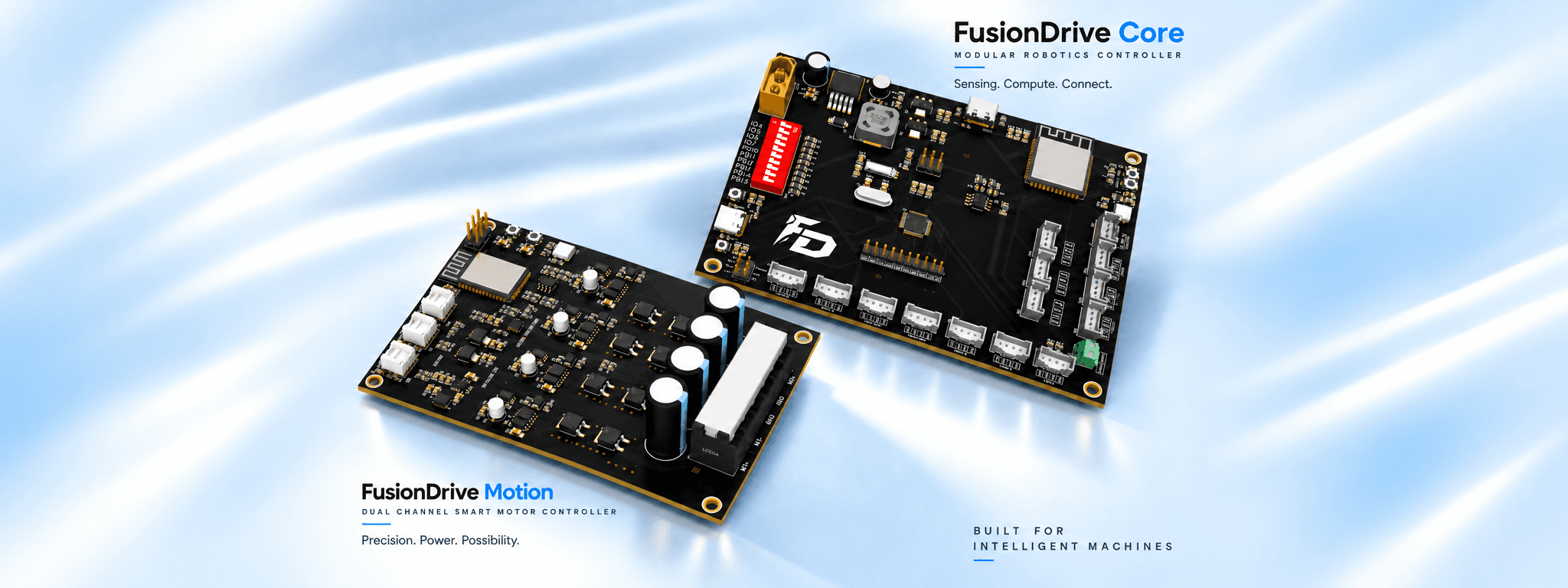

FusionDrive hardware ecosystem — FusionDrive Core modular robotics controller and FusionDrive Motion dual channel smart motor controller

ENGINEERING THE FUTURE OF ROBOTICS

Building the Robotics Platform for Intelligent Machines

FusionDrive is building toward an integrated robotics ecosystem where motion control, embedded electronics, AI computing, sensing, and developer tools can work together through a common architecture. Our mission is to simplify robotics development through modular, scalable technologies.

CURRENT STAGE

Building the Foundation

FOCUS

Robotics • Embedded Systems • AI

VISION

Integrated Robotics Ecosystem

WHY FUSIONDRIVE EXISTS

Robotics development is still too fragmented.

Building a capable robotic system still requires integrating hardware and software from dozens of incompatible sources.

Fragmented Hardware

Different motor controllers, sensors, power systems, and compute modules often come from different vendors and are not designed to work together.

Technical Impact: More integration work.

Complex Integration

Different hardware interfaces, buses, and protocols add wiring, drivers, adapters, and integration effort.

Technical Impact: More engineering overhead.

Multiple Software Ecosystems

Developers have to work across different firmware, SDKs, operating systems, tools, and software stacks.

Technical Impact: Greater software complexity and disconnected development workflows.

Slow Development Cycles

Too much time is spent solving hardware and software integration problems before the actual robotic application can be developed.

Technical Impact: Slower iteration.

OUR APPROACH

Build the foundation once. Build more on top of it.

FusionDrive is developing modular hardware and embedded systems around reusable interfaces, control infrastructure and software integration. The goal is to reduce repeated low-level engineering and create a stronger foundation for robotic systems.

Seamless Integration

Hardware, firmware, and software are designed to work together from the foundation.

Modular & Scalable

Start with one system and expand as your robotics platform grows.

Developer Friendly

Clear interfaces, reusable tools, and accessible software reduce the work between idea and machine.

Built for Real-World Robotics

Designed for actual machines, from early prototypes to scalable robotic systems.

Current Products

What FusionDrive has built.

Two working hardware prototypes, currently in firmware development and optimization. Not commercially available yet.

Working Prototype

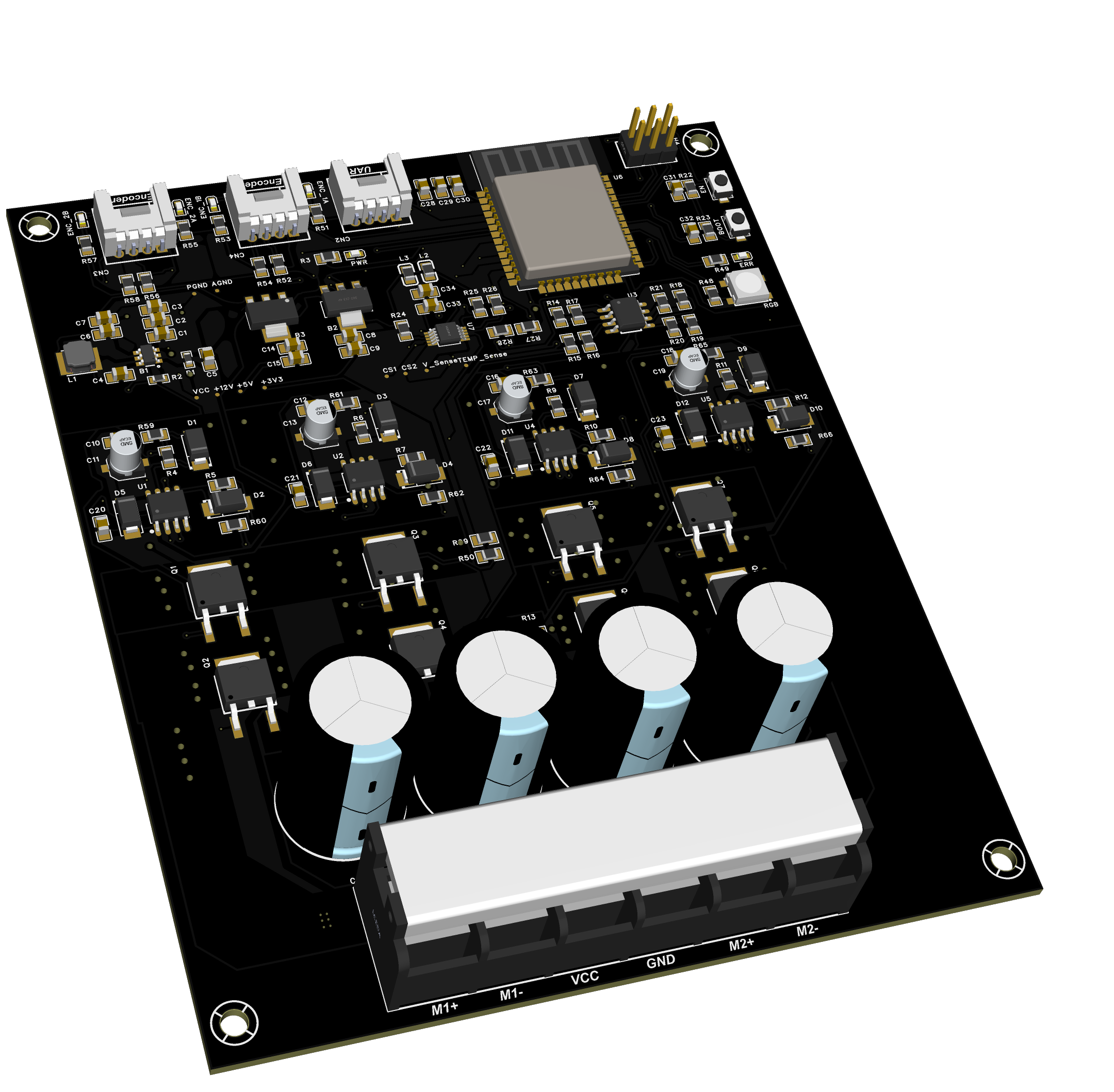

FusionDrive Motion

Dual Channel Smart Motor Controller

Intelligent motion control with feedback, telemetry and protection built into the platform.

FusionDrive Motion is a dual-channel DC motor controller designed for robotics, automation, autonomous systems and advanced embedded applications.

It combines motor control, encoder feedback, closed-loop PID control, telemetry, communication and protection into a compact embedded platform.

Specifications

Channels	2 × DC Motor Channels
Operating Range	14V–36V
Continuous Current	20A / channel
Control Mode	Closed-Loop PID Control
Encoder Feedback	Quadrature Encoder Feedback
Communication	UART, BLE, Wi-Fi
Live Telemetry	RPM, current, voltage, temperature
Protection	Overcurrent, Overtemperature, Undervoltage, Overvoltage

Working Prototype

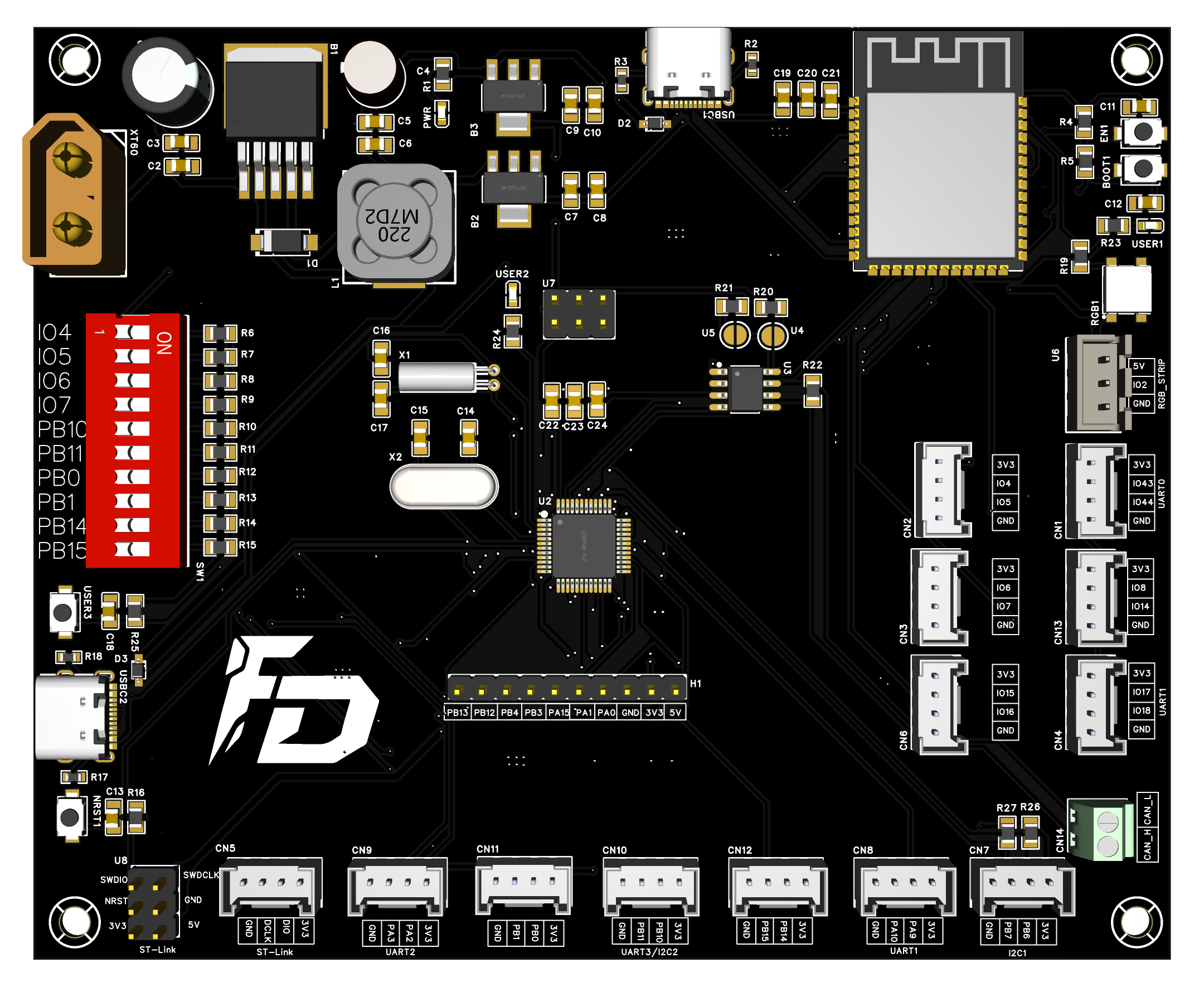

FusionDrive Core

Modular Robotics Controller

Built as the central compute, sensing, communication, and control backbone for autonomous robotic platforms, FusionDrive Core is designed to handle sensor acquisition, actuator coordination, control-loop execution, telemetry exchange, communication bridging, debugging, and system orchestration.

System Architecture

STM32F103C8T6— Real-time control and peripheral management

ESP32-S3— Wi-Fi/BLE communication, remote interfacing and wireless diagnostics

SPI— Inter-processor communication between STM32 ↔ ESP32-S3

Architecture principle: A heterogeneous dual-MCU architecture separates hard real-time embedded control from network and communication workloads.

Communication & Expansion

CAN BusUARTSPII²CGPIO Expansion

Designed to Integrate With

LiDARIMUGPSToF SensorsOLED/TFT DisplaysMotor ControllersEncodersLoRa ModulesServo DriversSensor Fusion ModulesCustom Peripherals

Hardware Configurability

DIP-switch configurable hardware supports:

I²C pull-up control
Encoder interfacing
Digital input conditioning
Protocol adaptation
Rapid prototyping / debugging

Development & Debug

STM32

•ST-Link SWD debugging/programming
•UART flashing via CP2102
•USB Type-C bootloader-based firmware upload

ESP32-S3

•Native USB Type-C programming/debugging

Additional onboard support

•Boot configuration
•Reset circuitry
•User push-button
•Status/debug LEDs
•WS2812 expansion

ENGINEERING EVIDENCE

Built, tested, and engineered in-house.

Selected evidence from FusionDrive's hardware development, embedded systems, robotics integration, PCB engineering, and mechanical design work.

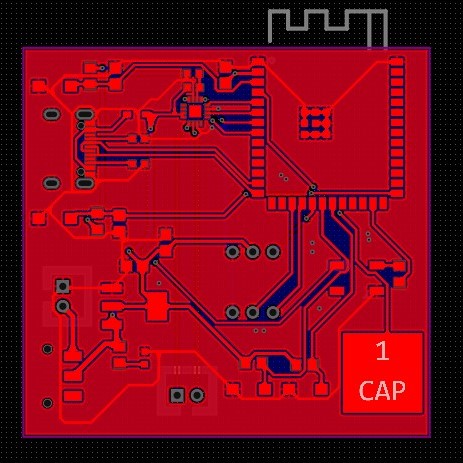

FusionDrive PCB layout and embedded hardware design

PCB ENGINEERING

PCB Design & Development

PCB layout and hardware development work behind FusionDrive's embedded electronics platforms.

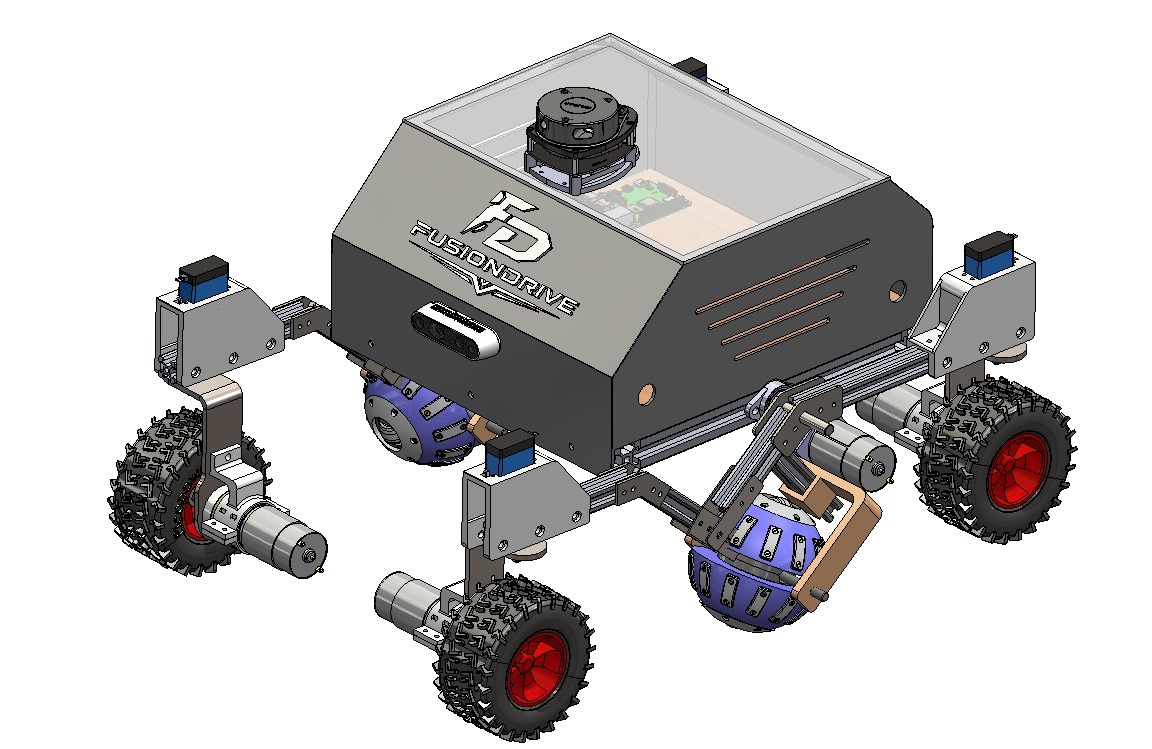

FusionDrive robotic rover mechanical CAD design

ROBOTICS DESIGN

Robotic Platform Design

Mechanical CAD development for a FusionDrive robotic platform.

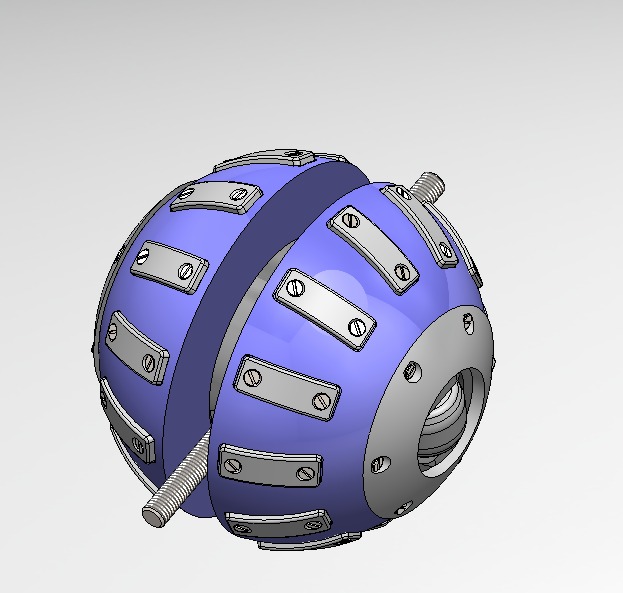

FusionDrive omnidirectional wheel mechanism CAD design

MECHANICAL DESIGN

Omnidirectional Mobility

Mechanical development of an omnidirectional wheel mechanism for robotic mobility.

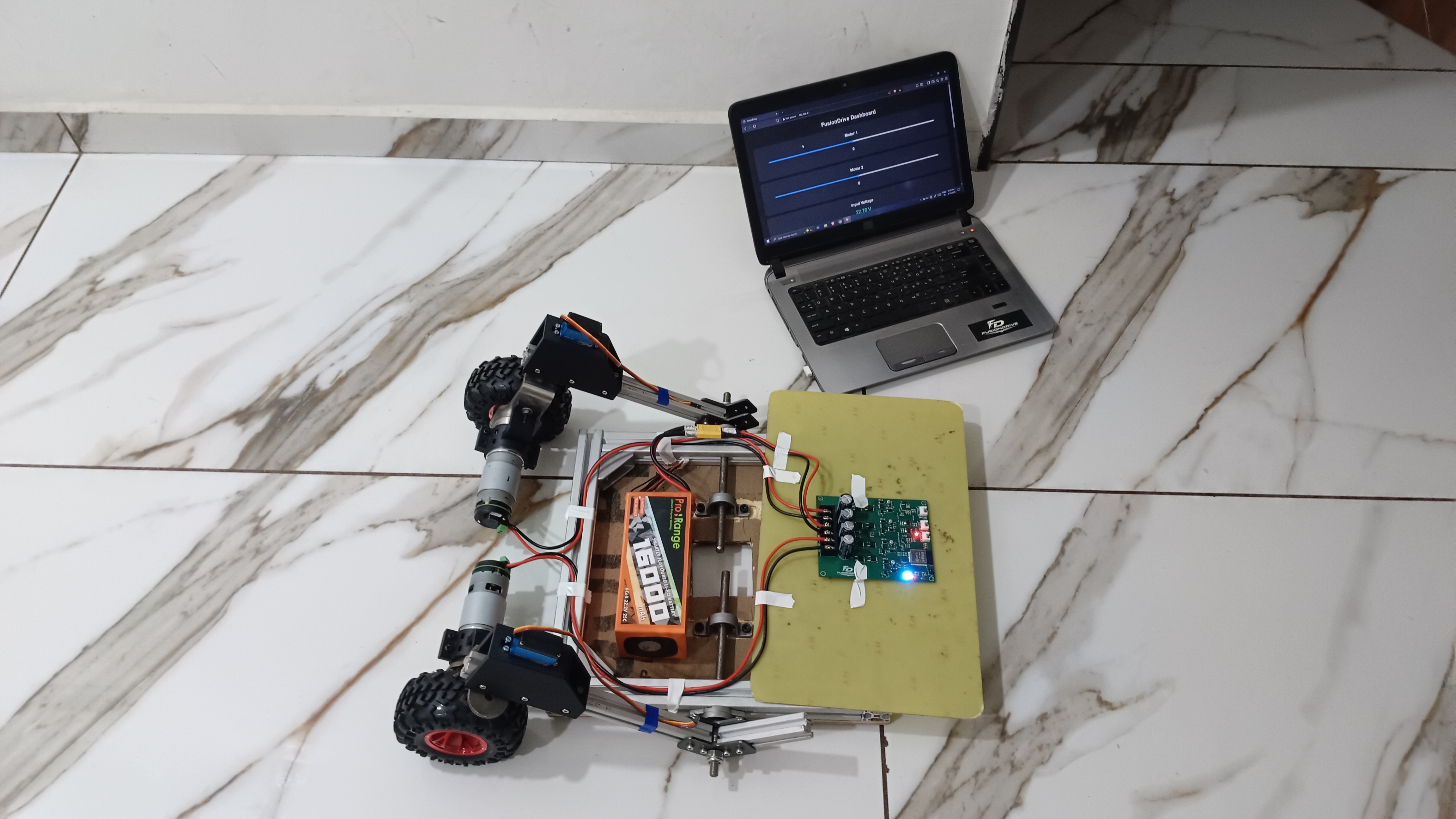

SYSTEM INTEGRATION

Robotics System Integration

FusionDrive hardware integrated into a physical robotic platform for system-level testing and development.
